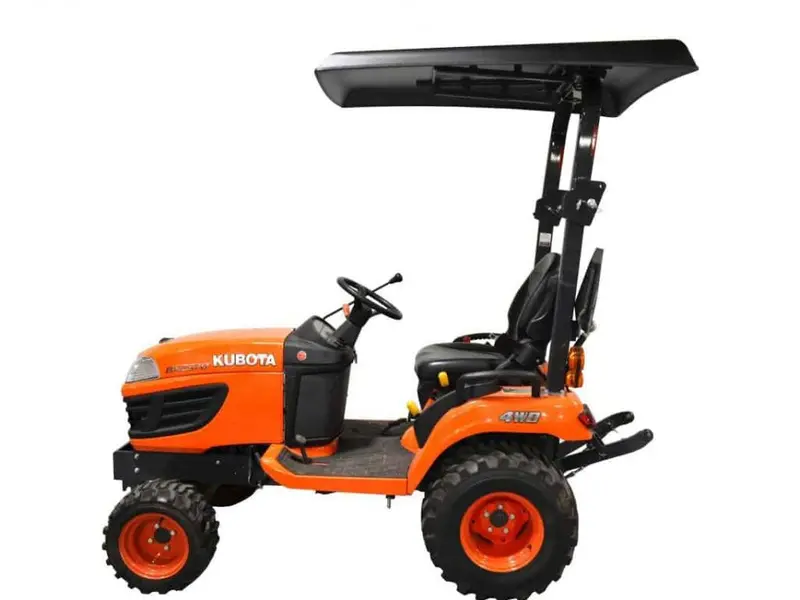

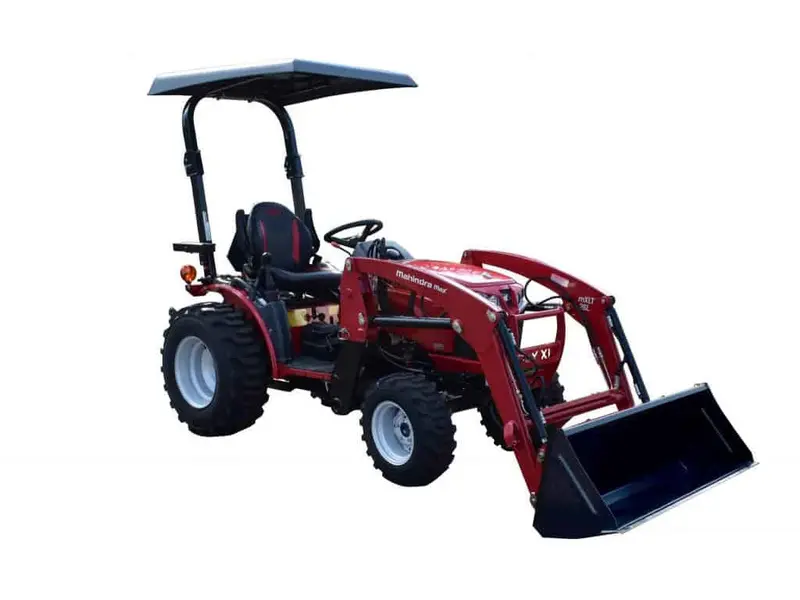

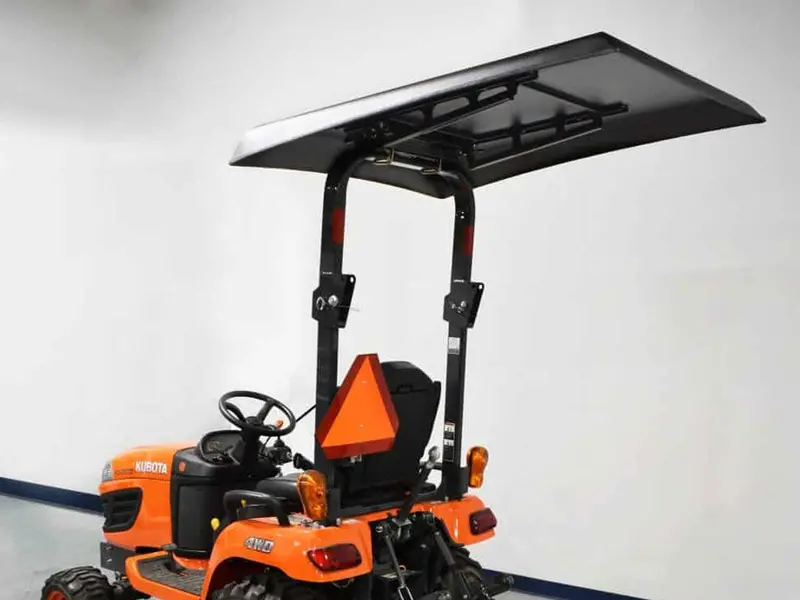

Curtis Universal Rops-Mounted Tractor Canopy

Description

DESCRIPTION

TRACTOR

Universal ROPS-Mount Canopy

56” long and 42” wide at the back, tapering to 37” in the front

Versatile | Lightweight Aluminum | Reversible | Universal Fit

Canopy, mount, and all hardware included.

Available in 7 Colors: Black, White, Gray, Red, Orange, Blue, & Green

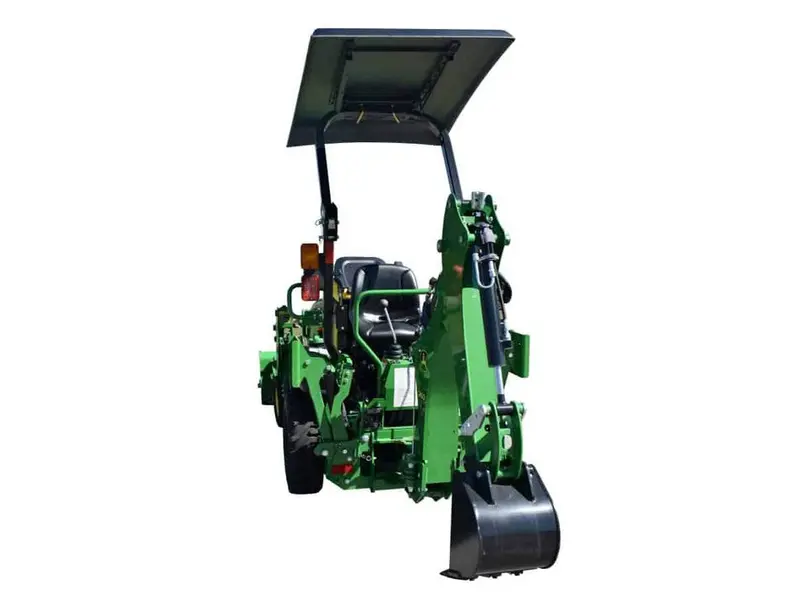

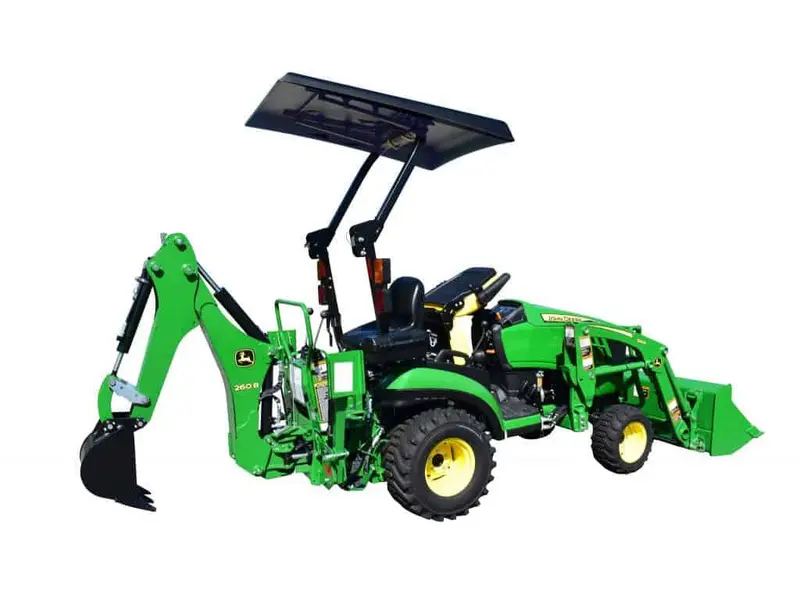

Turn the canopy to the rear-facing position for shade while operating the backhoe.

Remove the canopy in seconds for easy trailering or to maneuver around low obstacles.

• Canopy adds 4 inches perpendicular to the flat top surface of the ROPS
• Unclipping and removing the top, the brackets extend approximately 3”
• Fits Maximum ROPS Size 3” Wide X  2 ¾” Thick
• Requires 10 inches of flat surface on top of ROPS

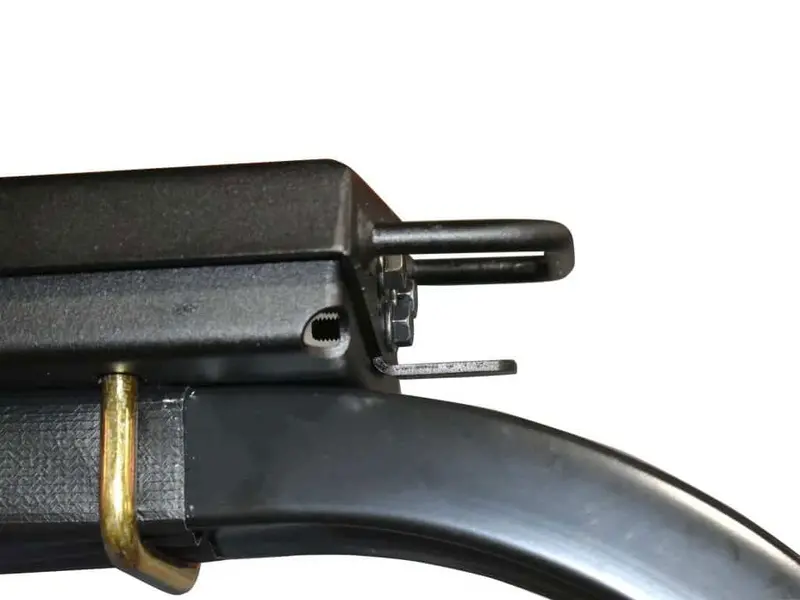

Mount/Pivot assembly mounts to vehicle ROPS in minutes. The lightweight canopy features integrated handles with a quick-release latch for easy removal.

Features

• Lightweight aluminum cover – weighs less than 30 lbs.
• Toolless removal in seconds
• Integrated handles – quick-release latches
• Reversible — rear-facing for backhoe operation
• Adjustable positioning – fits angled or straight ROPS
• Canopy top adjusts 6” forward or aft
• Easily installs in 30 minutes
• Trailerable up to 35 mph

SPECS

FITMENT REQUIREMENTS

• Fits square or rectangular ROPS
• 10” of flat surface on top of ROPS
• 2” to 3” ROPS width
• 1.5” to 2.75” ROPS thickness
• ROPS can be angled +/-36 degrees
• Adjustable 6” forward and back
• Dimensions: 56” long and 42” wide at the back, tapering to 37” in the front

CANOPY SHIPPING DIMS:

• Canopy Dimensions: 60 x 45 x 7 inches
• Canopy Weight: 31 lbs
• Hardware Dimensions: 42 x 25 x 9 inches
• Hardware Weight: 35 lbs
