Baumalight MS530Mfor Mini Skidsteer

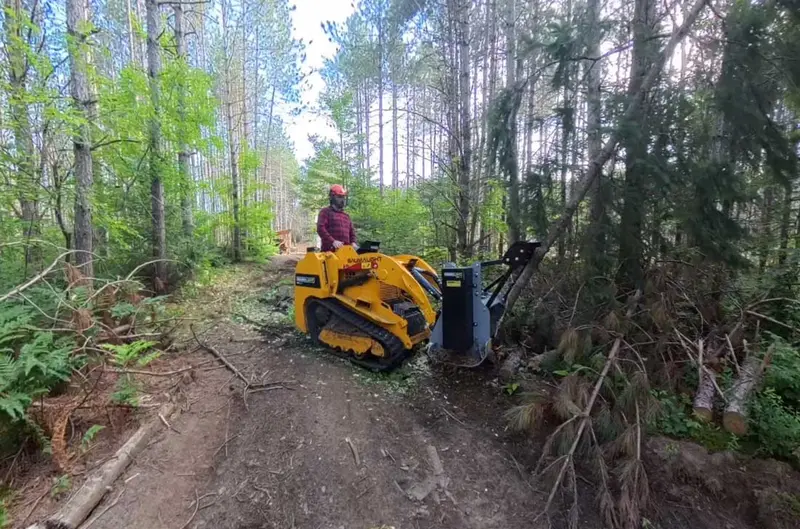

MS530M Fixed Tooth Mulcher for Mini Skidsteer

• The MS530M Brush Mulcher is a heavy-duty, versatile Mini Skidsteer mulcher built for efficient mulching and clearing of brush, trees, and vegetation. It features an integrated push bar to control and bend taller brush, along with adjustable skid shoes for optimal cutting height. The armoured and sleeved Baumalight hoses with a pivoting arm protect against pinching and strain. The hardened V-Notch teeth and tooth holders firmly grip the teeth to absorb impacts, while the spiral tooth pattern allows smooth mulching. The standard wire protection kit prevents damage from fencing. The reinforced belt delivers force from the from the bent axis piston motor to the rotor, protecting against mulching shocks. The heavy-duty, powder-coated frame ensures durability and the bent axis piston motor makes efficient use of hydraulic flow for powerful brush clearing. With 6 free replacement teeth included, and optional 500 Series ripper teeth for shredding action, the MS530M combines innovative features and robust construction for outstanding mulching performance.

Key Features & Benefits:

INTEGRATED PUSH BAR

The integrated brush bar helps control the brush and bend taller brush for easier mulching.

ADJUSTABLE SKID SHOES

These two position skid shoes allow you to adjust the cutting height for optimal clearing performance.

ARMOURED AND SLEEVED

Baumalight hoses are sleeved and double shielded for the operator and hose protection.

V-NOTCH

The force and impact of mulching often bends the teeth. Our V-Notch teeth and hardened holders hold the tooth firmly in place to absorb impacts from multiple directions.

HARDENED TOOTH HOLDERS

These heavy-duty tooth holders resist bending and keep you working longer.

SPIRAL TOOTH PATTERN

For smoother mulching, the spiral tool pattern allows one tooth to engage at a time.

REINFORCED BELT

A heavy duty reinforced belt delivers the force from the gear box to the rotor. This offers protection from the shocks inherent in mulching.

WIRE PROTECTION KIT

Protective steel cover that prevents damage from wire fencing.

HEAVY DUTY FRAME

Heavy duty frame with T1 alloy tool steel sheet metal for all the main areas. Powder coated frame with multiple anti-slip pads to give you secure footing for ease of entry and exit from your cab.

POWDER COATED

Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.

BENT AXIS PISTON MOTOR

Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.

6 FREE TEETH

All MS530M Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth are conveniently shipped in a robust enclosed compartment on top of the frame.

VIDEOS

SPECS

Model No.	MS530M	MS530B
Mount	Standard Mini skindsteer	Bobcat mini skidsteer
Path Width	42″	42″
Rotor Width	30″	30″
Minimum carrier weight	2,000	2,000
Cutting Depth	1.5″ Above to Level	1.5″ Above to Level
Holder Style	Fixed	Fixed
Tool Style	Carbide Tipped Bolt In	Carbide Tipped Bolt In
Tooth Part number	P5000	P5000
Number of cutters	44	44
Rotor Diameter (tool tips)	15″	15″
Rotor Weight (with tools)	300 lbs	300 lbs
Case Drain	Critical	Critical
Hydraulic Couplers	Included	Included
Unit Shipping Weight	715 lbs	758 lbs
